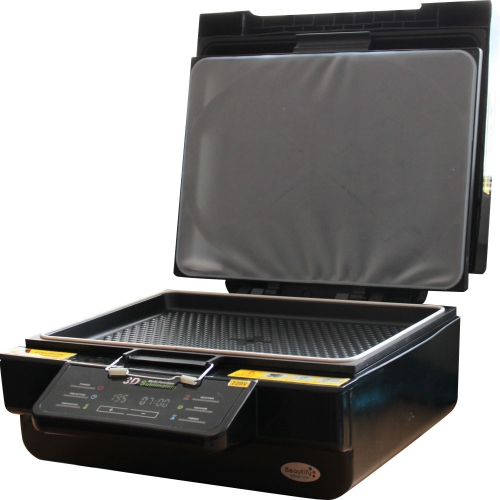

Oven 3D

Try sublimation in 3D


The oven 3D combines heat and air vacuum for a perfect sublimation. Thanks to an integrated pump air, the pressure is exercised by air vacuum. Perfectly hermetic, the silicone sheet covers and stick the transfer paper on the support. IR allows a constant heat for an excellent transfer of colours. No need anymore to have heat plate adapted to the support like for a heat transfer press.

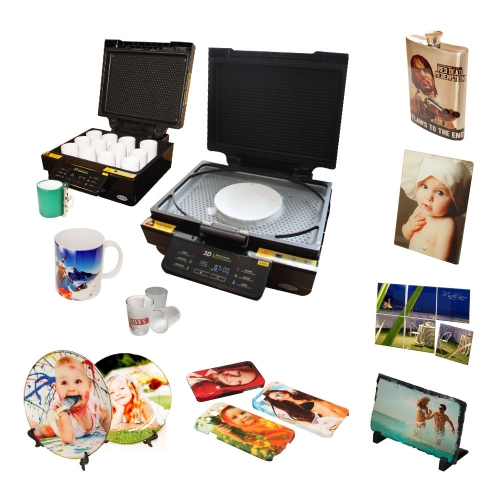

Multi-purpose and practical, the 3D oven allows a complete sublimation of all heat-transfer resistant supports pre-treated or in polyester material (textile, ceramics, glass, plastic, etc.).
An only one machine can sublimate easily numerous supports (tiles, jigsaw puzzles,…) and incurved (wine pot, smartphone case, plate, etc.).

The OVEN 3D is delivered with:
• 2 silicone foil
• 2 tension systems for standard mug
• 1 tension systems for small ceramic beer

-------

Plate: A 100% transfer!
• 100% sublimated : The oven 3D represents the only one process which allows to sublimate the entire plate.
• 100% intact and successful : The plate remains a difficult product to transfer with a heat-transfer press. There is a lot of marking space missed due to the regulation of pressure,
temperature, etc.A 3D oven guarantees a constant pressure and heat without damaging the plate. No more risk of breaking supports!
The 3D oven takes place perfectly in a workshop. To produce in big quantities, we advise end
customers to use several 3D ovens.

Silicone mold for shot glasses
• The mold for shot glass consists of a part in silicone and another part of a tight metallic lid.
• Allows marking on 7 shot glasses at the same time.
Caracteristic(s) :
- External dimensions (L x H x P): 48 x 37 x 55 cm
- Maximum marking size (L x H x P): 30 x 11 x 40 cm
- Weight: 23 kg
- Power: 2 800 W - 220 / 110 V (delivered with European standard socket)
- Debit of aspiration: 33 L/min
- Guarantee: 1 year guarantee
