TM 354

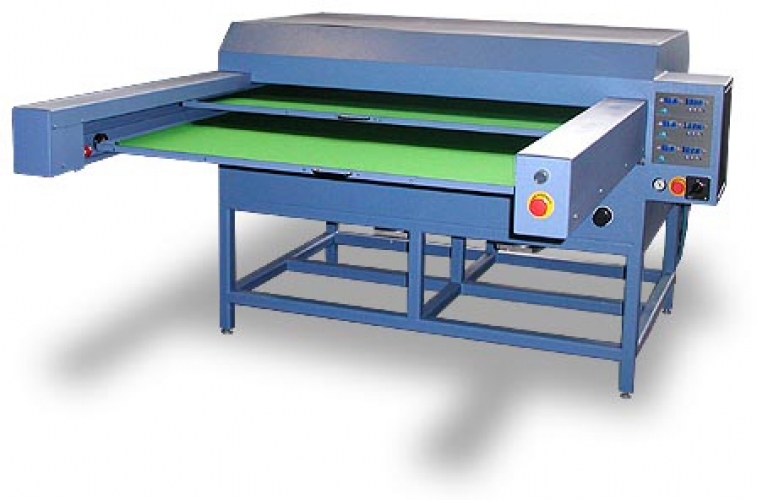

Automatic Double Bed Pneumatic Flat Heat Press Machine


The TM 354 is a flat press with a double front bottom trolley sliding automatically, in 122 x 76 cm format per tray.

Its double-shift system helps increase productivity. While the transfer takes place on one of the trays, the operator can prepare the next production on the second tray, passing from one station to another without interruption.

Thanks to its two sliding front stations, the TM 354 is space-saving and the workspace is optimized.

3 thermostats, spread over the width of the heating tray, allow to evenly heat the entire tray.

It is suitable for the printing size of the 9700 series Epson printers (111.8 cm width).

Optional double heating plate
The additional heating plate helps stabilize and reduce temperature variations during production (max 1° difference). The transfers are then homogeneous and do not decline in colorimetry. The quality of the marking is thus guaranteed, even for large series.
Caracteristic(s) :
- Lower platen (W x D ) : 122 x 76 cm
- Size : 176 x 111 x 207 cm
- Power : 380 V + N
- Total consumption : 7,2 KW
- Total consumption/h : 3,5 KW
- Thermostat : 40°-285° C
- Trimer : 0-999,9 sec.
- Pressure ( 6 bar ) : 300 - 400 g/cm²
- Net weight : 1400 Kg
- 1 year warranty
Accessory(ries) :
• Air compressor needed
• The air connection hose is not supplied with the press.
Connection kits are available.
