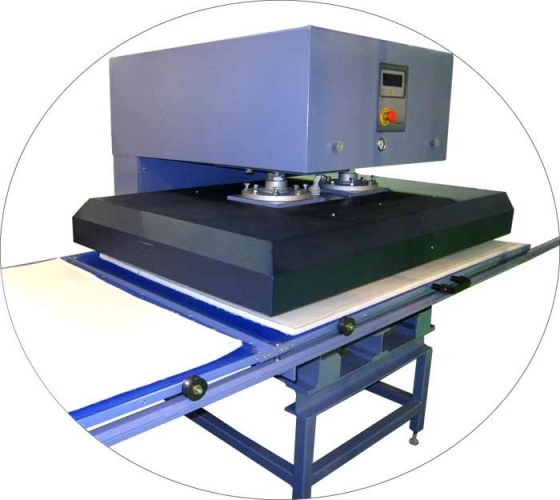

TM 150 DOUBLE STATION
Industrial Pneumatic Heat Press
The TM 150 double station is an improved version of the TM 150 single station, with the same basic technical features. Instead of having a single platen for front loading, it is equipped with a double sliding lateral platen thanks to its additional rail of 450 cm.
Its double-shift system helps increase productivity. While the transfer takes place on one of the trays, the operator can prepare the next production on the second tray, passing from one station to another without interruption.
Caracteristic(s) :
Lower platen ( 2 x W x D ) : 2 x 150 x 100 cm
Power : 380 V + N
Total consumption : 11 KW
Total consumption/h : 5,5 KW
Thermostat : 40°-285° C
Trimer : 0-999,9 sec.
Pressure : 200 - 300 g/cm²
Net weight : 400 Kg
1 year warranty
Power : 380 V + N
Total consumption : 11 KW
Total consumption/h : 5,5 KW
Thermostat : 40°-285° C
Trimer : 0-999,9 sec.
Pressure : 200 - 300 g/cm²
Net weight : 400 Kg
1 year warranty
Accessory(ries) :
* Air compressor needed
* The air connection hose is not supplied with the press.
Connection kits are available.
* The air connection hose is not supplied with the press.
Connection kits are available.
