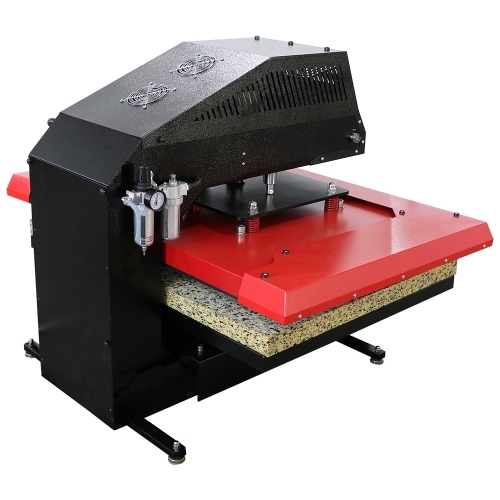

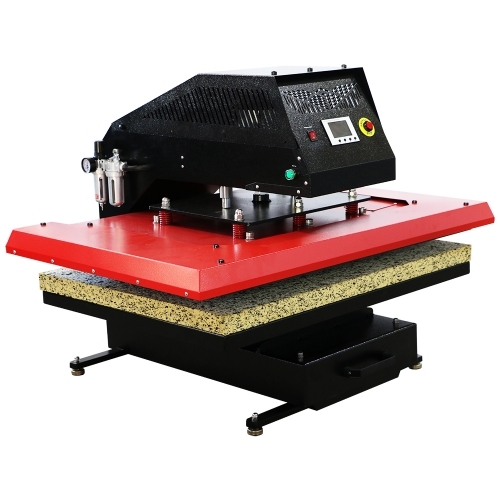

LARGE FORMAT PRESS: GF-11080PTR

Pneumatic press, format 110 x 80 cm


The GF-11080PTR is a pneumatic press for transfer on textile and other flat media of a 105 x 75 cm format. The parallel closing of the heating plate allows the marking of thicker media up to 5 cm.

The GF-10575PTR is a very polyvalent press, which opens the clothing market and sportswear apparel. Its large working surface allows the realization of complete cloth patterns. Its 110cm width meets the requirements of large format printers 44”(11,8cm widht).

Compared to a 80 x 60 format, the 110 x 80 cm plate allows printing on even larger substrates and improves even more the productivity with the multi exposure (press at once 180 visit cards, 54 tiles of 10,8 x 10,8 cm, a whole fresco, etc.)

Its pneumatic system – which requires a compressor-, guarantees an effortless work even for large production series as the closing of the heating plate is activated using the 2 push buttons and the opening is automatic. The pressure is measurable thanks to the nanometer and uniform on the whole media.

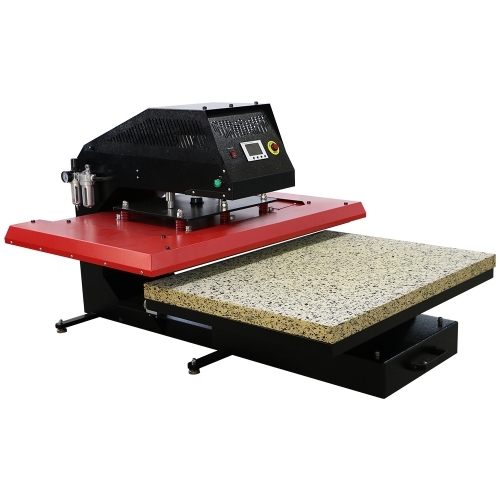

Ergonomic, the sliding lower plate eases the positioning of the products and offers a better visibility for the marking. The front up drawer makes the press space saving and limits the risk of burns than a press with the swing away opening.
To guarantee work quality, the upper plate is equipped with an anti-adhesive protection sheet; the lower plate with a special sublimation 4cm thickness foam covered with a 1cm thickness felt carpet, and a protection sheet.

The must of large format: Optional silicon foams!
Strongly improve your tee-shirt productivity with a 110 x 80cm platen ! Use the 110cm width and realize at once 2 sublimation printings up to 35 x 50 cm format thanks to the two silicon foams. It also heightens the printing surface for a uniform pressure without fold or any tissue surplus.

Promattex additional advantage:
The heavy-duty stand table is perfectly adapted to the dimensions of GF-10025EAR heat press. This table will be very convenient to display the press and store your consumables on the different shelves it features just below. Create your dream workspace without further ado.

You want to develop your business and propose new products,
contact us HERE


Caracteristic(s) :
- Plate format (L x P) : 110 x 80 cm
- Size (L x H x D) : 130 x 108 x 110 cm
- Power : 9,5 kW - 25 A
- Delivered with a bare power cable (no plug)
* Make sure you direct plug on 25A circuit breaker
- Voltage : 380V
- Digital Thermostat : 0 to 250°C
- Air Consumption : 5 to 8 L / cycle
- Automatic digital timer with buzzer
- Weight: 400 kg
- 1 year guarantee carry in / Certified CE
Accessory(ries) :
- Air compressor required
- Set of two silicon foams
