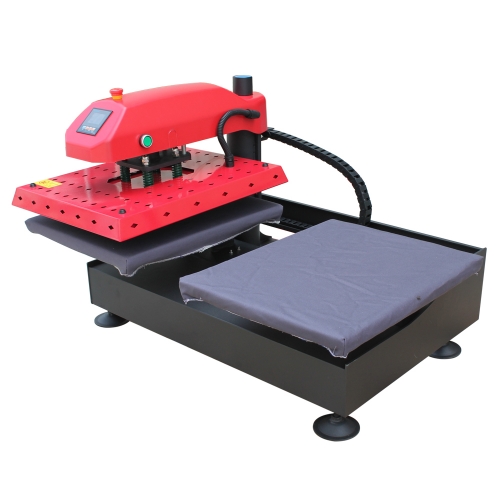

Transfer press Promashirt TS-4050P2ER

Double station pneumatic press format 40 x 50 cm


The Promashirt TS4050PER is a pneumatic press for textile and other flat media of 40 x 50cm format with a thickness up to 4cm

This pneumatic system requires a compressor. It guarantees a non-tiring work and a uniform pressure on the whole surface of your media

With its fixed double plate, you improve your productivity. When one tee-shirt is pressed, the operator prepares the next tee-shirt on the second station and so on. You optimize your work cadence. According to the type of transfer used, your productivity is up to 240 pieces an hour with only one operator.

Comparing to a moving double plate, this press offers more assets:

- 2 fixed plates (40 x 50 cm) which lowers the risk of the logo moving during the transfer.
- There is less obstruction and movement for the operator (the workstation is 1 meter high instead of 1.50 meter)

How to use : Once the heating plate is manually placed above the bottom plate, it closes manually by pushing the two push-buttons. You hands are above the heating plate, so no risk of burns.

Digital display : You can set and control of the temperature (from 0°C to 250°C), the time (from 0°C to 999 sec.) and the pressure

The “U” form stand allows the printing on double-side thicker flat media you put on the lower plate such as polos with buttons, shirts, etc.

The (optional) kit of 4 lower plates, associated with the “U” form stand, ease the transfer on short and long sleeves media such as sport shorts, working clothes, luggage, umbrellas… The assembling is easy (manual screwing) for a vertical or a horizontal positioning.
Caracteristic(s) :
- Plate size (L x H) : 40 x 50 cm
- Power : 1 950 W
- Size (L x H x D) : 98 x 62 x 71,5 cm
- Weight : 105 Kg
- Voltage : 220 V
- Amperage : 8,8 A
- Timer
- Digital Thermostat : 0 to 250° C
- Time setting : 0 to 999 sec.
- « U » form stand
- Compressor required
- Air consumption : 4,3 L/cycle
- Guarantee one year carry in
- Certified CE
