Manual transfer press for t-shirt PromaShirt TS4050ME

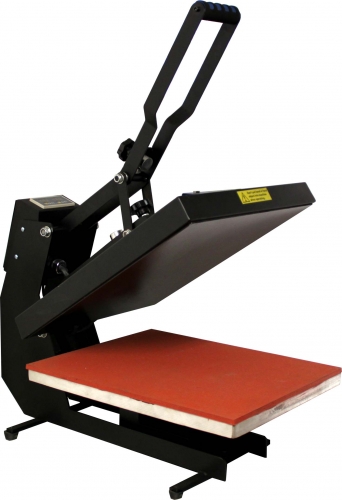

PromaShirt TS-4050ME transfer press

Evolutive manual press in 40 x 50 cm format for the transfer on textile
and other flat supports


The TS-4050ME PromaShirt is a manual and evolutive heat press for T-shirt and other flat supports. This bigger press is more appropriate for work shop and larger productions. Its large lower plate gives a better overview which makes easier logo positioning. Besidesm its A3 format working area increases the marking surface in one operation, for example, to make a sport shirt, it becomes possible to transfer the number and the name in one step application. Contrary to the PromaShirt TS-3838M press, the PromaShirt TS-4050ME is equipped with a stand in "U" which allows treating easily all kind of textiles on the lower plate. One of its best advantages is its evolutive features thanks to a kit of 4 lower plates (cf. next page).

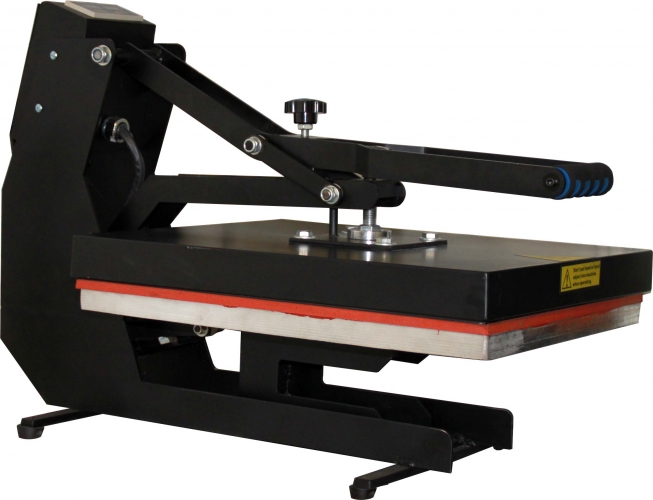

The TS-4050ME is equipped with a stand in “U” which allows treating easily all kind of textiles on the lower plate (shirt with button ect…), and make easier the change of plates.

Options:
In addition to the stand in “U”, the kit of 4 lowers plates, ease the transfer on short and long sleeves, sport shorts, working clothes, luggage and umbrellas. Easy to interchange with a 2 way positioning (vertical and horizontal)

The table laser pointer is mobile and may be installed around the heat press.
Two perpendicular lines made by red light are spread on the lower plate. By, their angle, they indicate the exact place of marking.
Caracteristic(s) :


- Size (L x W): 40 x 50 cm
- Size (L x W x H): 42 x 90 x 75 cm
- Power /Amperage: 220V - 2200 Watts -10A
- Digital Temperature control adjustable from 0 to 399°C
- Automatic Digital timer
- Weight: 40kg
- A twelve months warranty / CE Certification regulations
Accessory(ries) :


In option:
- Kit of 4 interchangeable lower plates
- Laser Pointer
- Kit for textile positioning
- Special Protection Cover
- High temperature foam mat
