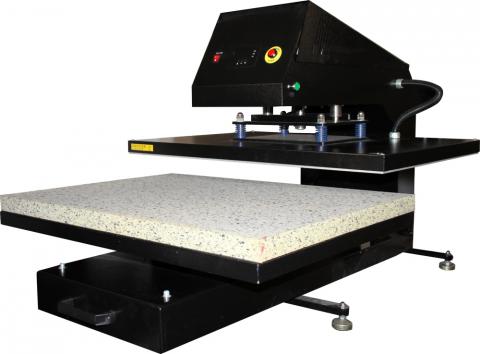

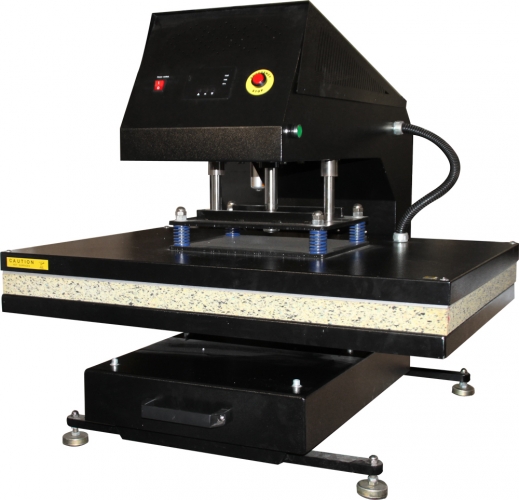

Big Format Press GF-75105PT

Pneumatic press format 75 x 105 cm for heat transfer


The GF-75105PT is a pneumatic press with single pull out plate for transfer on textile and other flat supports (format 75 x 105 cm and thickness up to 13 cm).

It is a very polyvalent heat press with various applications. It works as a standard heat press (format 40 x 50 cm).
It makes easier the transfer on valances and enables the sublimation on big format.
The 75 x 115 cm plate allows to print big format medias (pillowcase, carpet, bath towel,…) or more items at the same time (99 business cards, 35 tiles of 10.8 x 10.8 cm…).

The best of 75 x 105 cm heat press is the additional pad: Foam pad!

With a 75 x 105 cm plate, you will duplicate the transfer capacity on T-Shirts.
In the 105 cm width, you will make two transfers till 35 x 50 cm size, thanks to the two additional pads.
The highest position you reach with the additional pad, gives you an uniform pressure, without being disturbed by crease on material.
Caracteristic(s) :


- Plate (L x W): 75 x 105 cm
- Size (L x W x H): 136 x 120 x 195 cm
- Power: 5,1 KW
- Voltage: 220V
- Air consummation: 5,6 L / cycle
- Digital Temperature control adjustable from 0 to 225° C
- Automatic Digital timer
- Weight: 240 kg
- 1 year warranty / CE certification
Accessory(ries) :


- Air compressor required
- Foam pads
