PromaCut PC-730L
Cutting plotter of 63,5 cm width
The PromaCut PC-730L is the new plotter of the PromaCut range.
With a useful width of 63,5 cm, it is perfectly adapted to sign works and cutting of flex and flock for textile application.
Its low price meets the current requirements of the market and enables wider cutting than the cutting of the first price plotters available till now on the market.
The PC-730L is equipped with the manual spotting system.
For the easy daily use, the PC-730L is supplied with a Plug-in for
Corel Draw and Illustrator with a simple and functional interface.
Promattex advises the software Flexi Starter 8 the interface of which integrates and pilots the manual spotting system for cutting of the pre-printed logos.
Caracteristic(s) :
- CPU: 16-bit
- Driver: High speed stepping motor, micro-step driver
- Maximum paper feed width: 73 cm
- Maximum Cutting width: 63,5 cm
- Maximum Cutting Speed: 500 mm/s
- Cutting force: 0-600 gf
- Mechanical precision: 0,1 mm

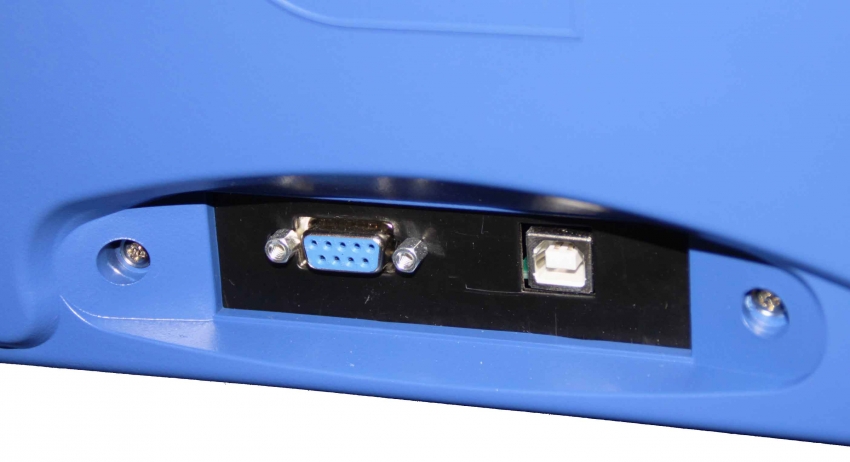

- Interface: USB Port & Serial Port
- Cache memory: 1 MB
- Power Supply: 220 V - 50 Hz
- Drivers: 2.6.2.0
- Compatibility: Windows XP, Vista et Seven (except Seven 64 bits
Ultimate)
- Dimensions (W x H x D): 86,5 x 25,4 x 27,3 cm
- Dimensions with stand (W x H x D): 86,5 x 109,6 x 61,5 cm
- Weight with the stand: 23 Kilos
- Warranty 1 year, return to our French office / Certificate CE
- Driver: High speed stepping motor, micro-step driver
- Maximum paper feed width: 73 cm
- Maximum Cutting width: 63,5 cm
- Maximum Cutting Speed: 500 mm/s
- Cutting force: 0-600 gf
- Mechanical precision: 0,1 mm
- Interface: USB Port & Serial Port
- Cache memory: 1 MB
- Power Supply: 220 V - 50 Hz
- Drivers: 2.6.2.0
- Compatibility: Windows XP, Vista et Seven (except Seven 64 bits
Ultimate)
- Dimensions (W x H x D): 86,5 x 25,4 x 27,3 cm
- Dimensions with stand (W x H x D): 86,5 x 109,6 x 61,5 cm
- Weight with the stand: 23 Kilos
- Warranty 1 year, return to our French office / Certificate CE
Accessory(ries) :
Options and consumables:
- Software Flexi Starter 8
- Software WinPCSign
- Blade for flex and adhesive vinyl, angle 45°, offset 0,25 mm
- Blade for flock, angle 17°, offset 0,25 mm

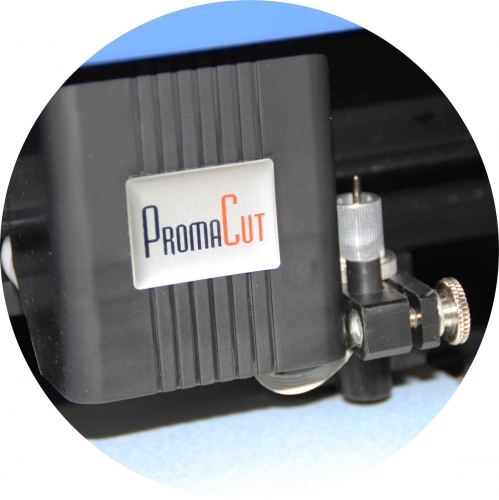

- Blade holder for all blades
- Protection Teflon Strip of 73 cm for PC-730L
- Software Flexi Starter 8
- Software WinPCSign
- Blade for flex and adhesive vinyl, angle 45°, offset 0,25 mm
- Blade for flock, angle 17°, offset 0,25 mm
- Blade holder for all blades
- Protection Teflon Strip of 73 cm for PC-730L
