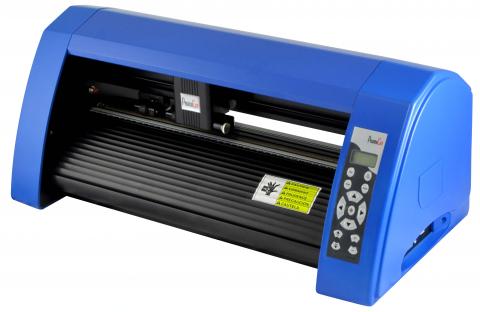

PromaCut PC-430L

Cutting tracer of 33 cm width


The PC-430L is the latest version of small model of PromaCut. It has a useful cutting width of 33 cm. This plotter was especially conceived for beginners in cutting of vinyls (adhesive and thermo transfer) and meets the expectations of the market with its competitive price.

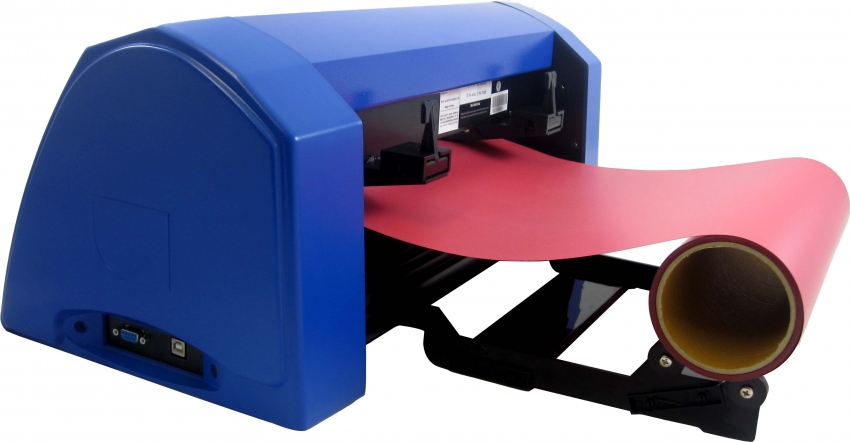

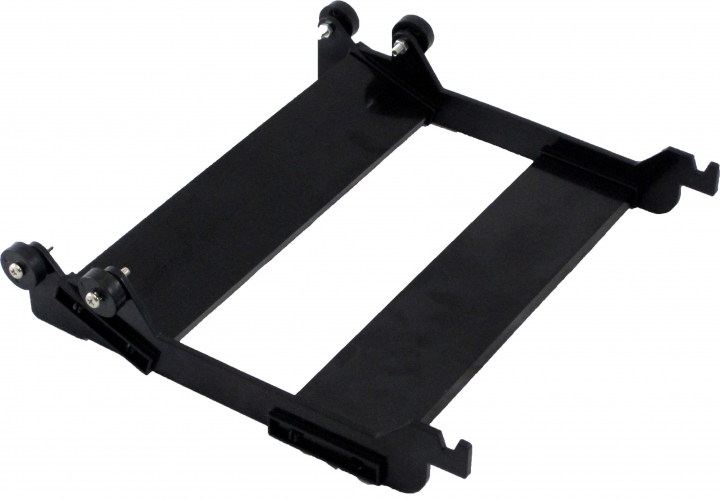

With its roll holder integrated, there are not additional expenses to face!

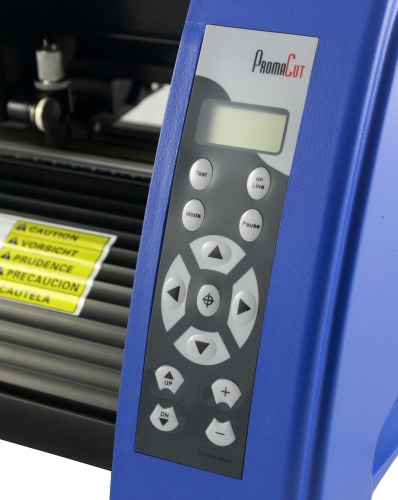

For easy daily use, the PC-430L is supplied with Plug-in for Corel Draw and Illustrator has an easy operational interface

The PC-430L is also controlled in option with WinPC Sign (Basic or Pro) and Flexistarter. Promattex advises the software Flexi Starter 8 the interface of which integrates and pilots the manual spotting system for cutting of the pre-printed logos.
Caracteristic(s) :
- CPU: 16-bit
- Driver: High speed stepping motor, micro-step driver
- Maximum paper feed width: 43 cm
- Maximum Cutting width: 33 cm
- Maximum Cutting Speed: 500 mm/s
- Cutting force: 255 gf
- Mechanical precision: 0,1 mm

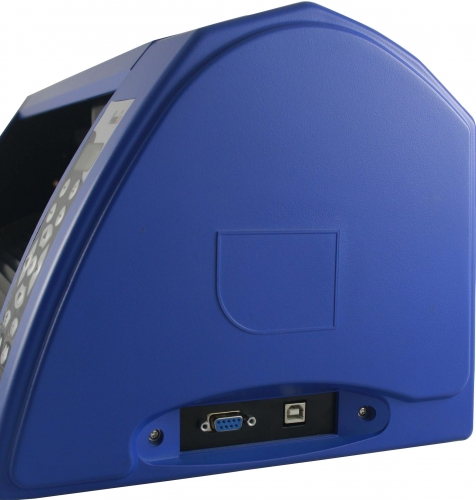

- Interface: USB Port & Serial Port
- Cache memory: 1 MB
- Power Supply: 220 V - 50 Hz
- Drivers: 2.6.2.0
- Compatibility: Windows XP, Vista et Seven (except Seven 64 bits
Ultimate)
- Dimensions (W x H x D): 56 x 24 x 27 cm
- Weight: 12,5 Kilos
- Warranty 1 year, return to our French office / Certificate CE
Accessory(ries) :
Options and consumables:
- Software WinPCSign Basic or Pro and FlexiStarter
- Flex and adhesive vinyl knife, 45° angle, offset 0,25 mm
- Flock knife, 17° angle, offset 0,25 mm
- Knife holder for any knife
- Special protection tape 43 cm for PC-430L
