TM-720L

Cutting width : 60 cm - Engine step by step


Promattex has developed a new generation of PromaCut cutting plotters with the TransMax range. With a cutable width of 60 to 122 cm, they are available in 2 versions, LIGHT and PRO, and are delivered with CutStorm software. These plotters allow all types of cutting on adhesive vinyls (flex, flock, photoluminescent, reflective etc.) and transfer paper with printing clipping. They are able to meet the needs of both small and large productions.

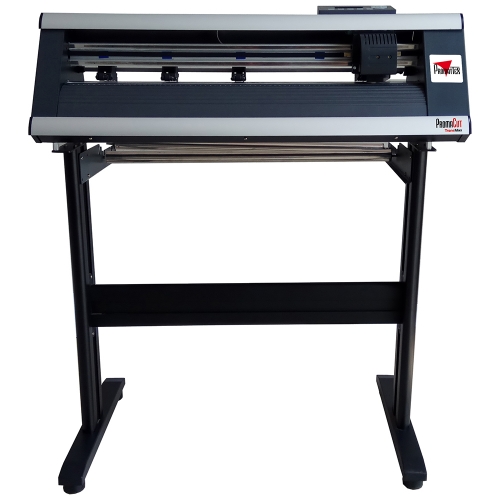

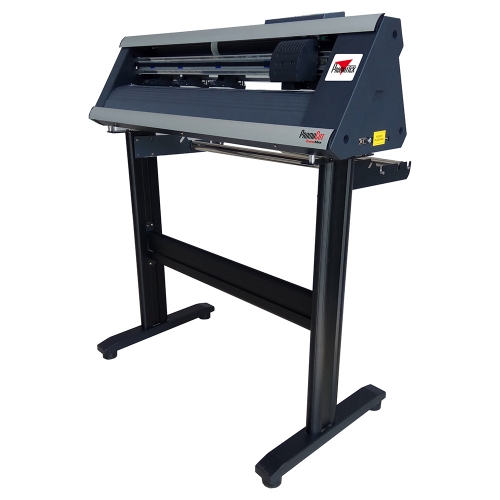

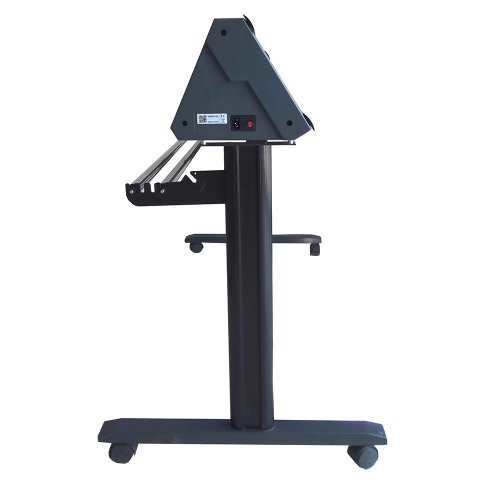

The TM-720L is a plotter of the LIGHT range with a cutting width of 60 cm. This entry-level professional plotter allows you to do all your cutting work. It’s delivered with CutStorm Basic software that allows you to be quickly operational. It’s suitable for professionals wishing to start at a lower cost, and do not need automatic printing cutting.

Main characteristics :
• Engine step by step
• Marker Detection System: manual by laser point
• Maximum cutting width : 60 cm
• Maximum paper feed width : 72 cm
• Maximum cutting speed : 600 mm/s
• Cutting force: up to 500 gf
• Mechanical Resolution: 0.0125 mm
• Reproducibility: 0.1 mm
• Cutting Film : Adhesive Vinyls, heat-transfer Vinyls, fluorescent and reflective films (Highly reflective films and thicker than 0.25mm are not supported), polyester films (up to 0.25 mm thick and without warranty of accuracy cutting).
• Software included : CutStorm Basic
• Stand and roll holder included

Advantages :
• Cutting width that optimizes layouts, reduces material loss and makes it easy to apply adhesives.
• Its low price meets the current requirements of the market and enables wider cutting than the cutting of the first price plotters available till now on the market.
• Software CutStorm Basic and Plug-in CorelDraw included : no additional investment needed.

CutStorm Basic Software
The TM-720L comes with the CutStorm Basic software, a simple and clear support for preparing or creating your files to cut. With many options such as automatic contour creation, feed after cutting or Easy Lift-Marks (cutting inside lettering to facilitate weeding), the CutStorm Basic software will allow you to start easily in the cutting. More info on the software here!

TransMax plotters come with:
• Stand (assembly in 15 minutes using a screwdriver)
• Roll holder / dispenser
• 3 flex blades
• 1 blade holder (specific to TransMax)
• USB cable
• COM cable
• Power cable
• Two pens
• CutStorm software to download here !
Caracteristic(s) :
• Interface : RS-232C, USB2.0 (pleine vitesse)
• Graphical language : HP-GL, HP-GL/2
• Supply : 100/240 V AC - 50 / 60 Hz (automatic switching)
• Consumption : Max 100 W
• Tools : 1
• Pen types: Water-based felt pen - Oil-based ballpoint pen
• Optimum conditions of use: 16 to 32 °C - Humidity: 35 to 70% RH.
• Compatible systems : Windows 10, 8 / 7 / Vista / XP

• Box Dimensions : 100 x 38 x 40 cm
• Box Weight : 24 kg
Accessory(ries) :
Consumables:

- Flex blade and adhesive vinyl, angle 45 °, offset 0.25 mm
- Flock blade, angle 17 °, offset 0.25 mm
- TransMax All-Blade Tool Holder
- Protective tape
