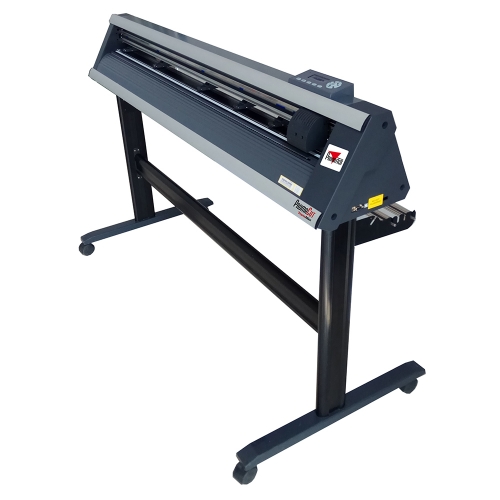

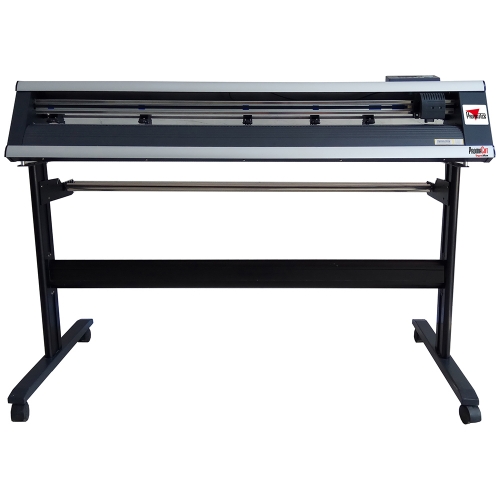

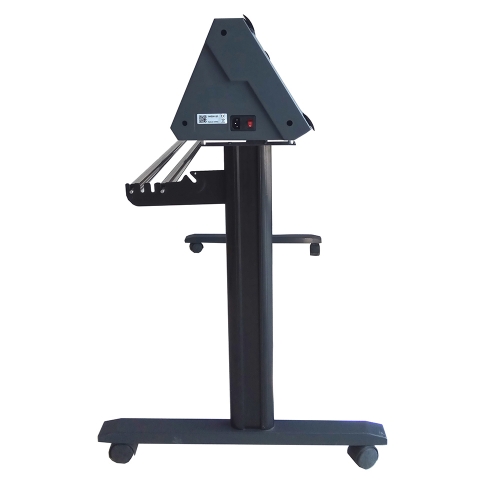

TM-1350P

Cutting width : 122 cm - Digital servo motor


Promattex has developed a new generation of PromaCut cutting plotters with the TransMax range. With a cutable width of 60 to 122 cm, they are available in 2 versions, LIGHT and PRO, and are delivered with CutStorm software. These plotters allow all types of cutting on adhesive vinyls (flex, flock, photoluminescent, reflective etc.) and transfer paper with printing clipping. They are able to meet the needs of both small and large productions.

The TM-1350P is a plotter in the PRO range with a 122 cm cutting edge. Compared to the LIGHT range, PRO professional plotters are equipped with a silent servomotor that makes them faster (800 mm/s). It is equipped with an Automatic Registration Mark Sensing (Arms) that, driven by the complete CutStorm PRO software, will allow you to accurately cut previously printed visuals.

Main characteristics :
• Digital servo motor
• Marker Detection System: Automatic ARMS
• Maximum cutting width : 122 cm
• Maximum paper feed width : 135 cm
• Maximum cutting speed : 800 mm/s
• Cutting force: up to 500 gf
• Mechanical Resolution: 0.0125 mm
• Reproducibility: 0.1 mm
• Cutting Film : Adhesive Vinyls, heat-transfer Vinyls, fluorescent and reflective films (Highly reflective films and thicker than 0.25mm are not supported), polyester films (up to 0.25 mm thick and without warranty of accuracy cutting).
• Software included : CutStorm PRO
• Stand and roll holder included


Advantages :
• Ideal cutting width for all major signage work. Its large cutting width facilitates the installation of adhesives and allows to start in the large format.
• 5 rollers ensure the stability of the vinyl unwinding when cutting even over long lengths.
• Fast and silent servomotor
• ARMS Automatic Registration System for Print Cutting
• Included CorelDraw Software and Plug-in: no additional investment needed.

CutStorm Pro Software :
The TM-1350P comes with the CutStorm PRO software, a simple and clear support to prepare or create your files to cut. With many options such as auto-tracking, image tracing and image processing (punching, stripping), the CutStorm PRO software will allow you to fully utilize your TransMax plotter !
More info on the software here !

TransMax plotters come with:
• Stand (assembly in 15 minutes using a screwdriver)
• Roll holder / dispenser
• 3 flex blades
• 1 blade holder (specific to TransMax)
• USB cable
• COM cable
• Power cable
• Two pens
• CutStorm software to download here !

Caracteristic(s) :
• Interface : RS-232C, USB2.0 (full speed)
• Graphical language : HP-GL, HP-GL/2
• Supply : 100/240 V AC - 50 / 60 Hz (automatic switching)
• Consumption : Max 100 W
• Tools : 1
• Pen types: Water-based felt pen - Oil-based ballpoint pen
• Optimum conditions of use: 16 to 32 °C - Humidity: 35 to 70% RH.
• Compatible systems : Windows 10, 8 / 7 / Vista / XP

• Box Dimensions : 164 x 38 x 40 cm
• Box Weight : 35 kg
Accessory(ries) :
Consumables:

- Flex blade and adhesive vinyl, angle 45 °, offset 0.25 mm
- Flock blade, angle 17 °, offset 0.25 mm
- TransMax All-Blade Tool Holder
- Protective tape
