GRAPHTEC FCX 2000-60VC

Flatbed cutter size of 61 x 92 cm

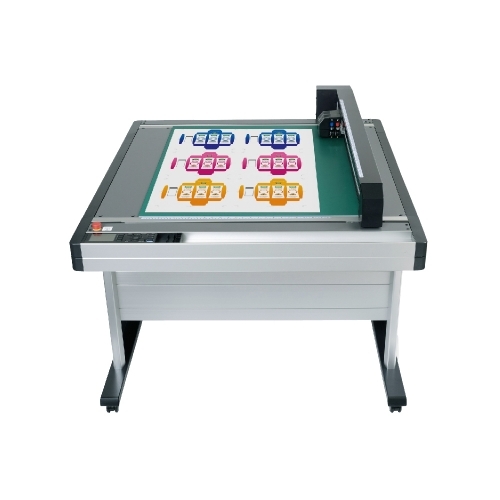

The GRAPHTEC FCX 2000-60VC flatbed is designed for the cutting of vinyl, paper, cards, magnets, cardboard and flexible to semi-rigid plastics. Its maximum cutting size is 61 x 92 cm.

Other models are available: the FCX 2000-120VC size 120 x 92 cm, and the FCX 2000-180VC format 180 x 92 cm.

Vacuum table:
Unlike a plotter, the media to be cut is fixed to the table by suction: no transport sheet or glued media is needed. The cutting is done in full flesh, without residues of material.

Dual tool holder:
Two tools can be mounted at the same time on the machine. It is possible to mount a cutting tool and a slotting tool at the same time to perform the cutting and wrinkle marking operations without changing the tools. A tracing tip can be used to draw a mock-up and control the trace before actual cutting.

The tool allows creating lines for bending the material. The number and spacing of the lines can be defined according to the media to be folded.

ARMS 6.0 system for even more precise contour-cut:
The integrated ARMS (Advanced Registration Mark Sensing system) on the cutting head makes it easy to cut the contours of pre-printed images on a printer and significantly improves the overall production of labels or stickers. The Landmark Detection process allows, if a reading error occurs, to simply restart the automatic detection again.

4-point alignment (two-axis correction):
Auto-scanning of four point registration marks compensate for distortion in both X & Y directions to ensure precise cutting. This technique allows more accurate detection and improves the reliability and quality of the cutting contour after printing.

Cutting/ Side groove thanks to the ARMS 6.0:
Cutting and grooving are possible even on the back of the printed media. This prevents any scratching or alteration of the print. On the FCX 2000 series, operation is simple with Cutting Master 4 or Graphtec Pro Studio.

Cutting of thick material:
The tool’s height control system detects the position of the blade tip on the material, and then intelligently and accurately aligns the blade rotation for subsequent cutting operations. This adjustment makes it possible to work with thick materials such as corrugated cardboard. Tangential control manages the orientation and cycle of lifting/lowering the blade into the material faster than motorized rotation systems. The blade is less often removed from the material to carry out its orientation. The FCX 2000-60VC allows perfect cutting and high productivity on thick materials.

Multi-page:
The FCX 2000-60VC detects each group of markers for continuous contour-cut when multiple copies of a page are made on the print media. This function decreases manipulations and thus increases productivity.

High precision machine:
Graphtec’s technology completely eliminates deformed, rounded or pointed angles, even if the model is very complicated, on a 0.025 mm vinyl or a 1,25 mm sandblast mask. This high precision allows FCX 2000 tables to cut 1.58 mm characters on vinyl.

Compatibility with creative software/Cutting-Master 4:
This plug-in allows you to send cutting data directly from Illustrator or CorelDraw and to control the tracer. The plug-in also allows you to create registration marks and manage multicopies, dimensions, cutting conditions and many other parameters. Easy to use, it allows you to get the best performance from your tracer.

• Plug-in in the design application
• Sort by layer / color
• Preview window
• Multiple cuts possible
• ARMS System Control
• Center, Rotation, Mirror
• Multi copies
• Panelist

Graphtec Pro Studio:
It is an intuitive user software for the creation of original designs. It has advanced functions such as predefined shapes, shading and editing functions. The import of EPS, Ai*, CMX* and PDF* files is supported, as well as the ability to configure working conditions and send to the flatbed
Caracteristic(s) :
- Strong Media hold down by suction
- Max. cutting surface: 61 x 92 cm
- Number of tools: 2
- Max. cutting speed: 400 mm/s
- Minimum font size: approximately 10 mm (depending on font type and material)
- Types of film:
* Adhesive films (vinyl, fluorescent, reflective)
* Thick paper/card up to 0.5 mm thick
* Sandblast mask up to 1 mm thick
* High intensity reflective film
* Polystyrene foam
- Overall dimensions (W x H x D): 134.4 x 93 x 140.9 cm
- Weight with stand (approximately): 76 kg
- Warranty 1 year return workshop
Accessory(ries) :
Accessories included with the machine:
- Single phase lateral channel turbine
- Thin protective layer
- Tool holder PHP31 - CB15B-HS, CB15U-2SP, CB15U-K30-5SP
- Water-based fiber-tip pen KF552-BK
- Hex key for M4 screws
- Height adjustment wedge 10 mm and 4 mm
- Flexible hose 1.5 to 5 m with à˜ connection 38 mm / 50 mm
- Clamp: à˜ 38 / 50 mm
- Installation base for suction pump
- Mains cord
- CBL1112-2.9M USB cable
- CD-ROM English User Manual / Driver / Cutting Master 4
